다나 RS 펌프

다음은 2017년 이후의 다나 RS 펌프를 사용하는 경우에서 앱과 펌프를 설정하기 위한 안내입니다. 만약 오리지널 다나 R 펌프를 사용하는 경우에는 DanaR Insulin Pump를 확인하십시오.

New Dana RS firmware v3 can be used from AndroidAPS version 2.7 onwards.

  • In DanaRS pump “BASAL A” is used by the app. Existing data gets overwritten.

Pairing pump

  • In AndroidAPS go to Config Builder and select ‘DanaRS’

  • 오른쪽 상단에 있는 점 3개를 눌러 메뉴를 선택하세요. 설정을 선택하세요.

  • Select DanaRS Pair New Pump, and click your DanaRS serial number.

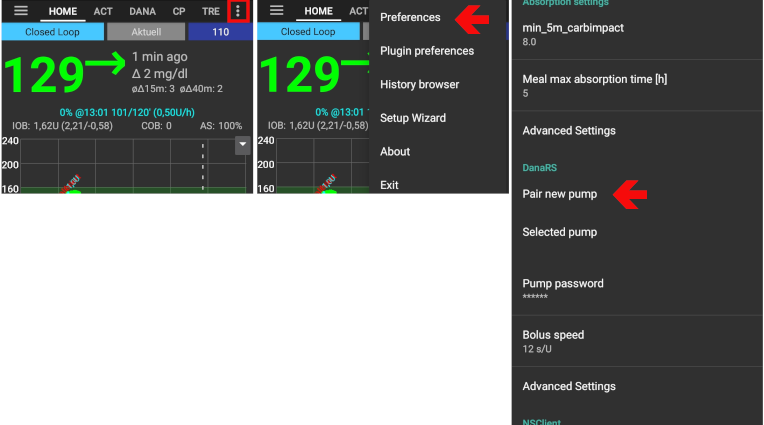

    AAPS pair Dana RS

  • Select Pump password and input your password.

Default password

  • For DanaRS with firmware v1 and v2 the default password is 1234.

  • For DanaRS with firmware v3 the default password is a combination of production month and production date (i.e. month 01 and day 24). Open main menu on pump > review > information. Number 3 is production date.

  • You have to confirm the pairing on the pump! That’s just the way you are used to from other bluetooth pairings (i.e. smartphone and car audio).

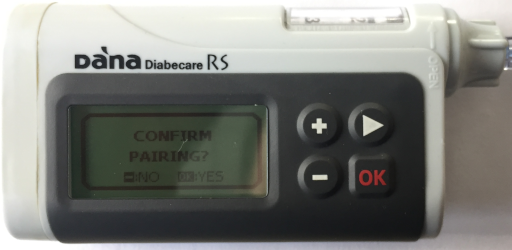

    Dana RS confirmation pairing

  • Select Bolus Speed to change the default bolus speed used (12sec per 1u, 30sec per 1u or 60sec per 1u).

  • Restart your phone.

  • Set basal step on pump to 0.01 U/h using Doctors menu (see pump user guide)

  • 펌프에서 확장Bolus를 활성화하세요.

Change password on pump

  • Press OK button on pump

  • In main menu select “OPTION” (move right by pressing arrow button several times)

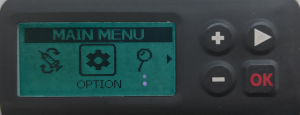

    DanaRS Main Menu

  • In options menu select “USER OPTION”

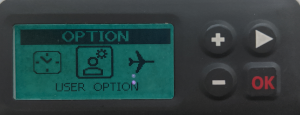

    DanaRS Option Menu

  • Use arrow button to scroll down to “11. password”

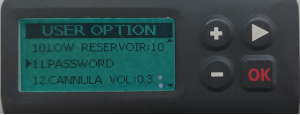

    DanaRS 11. Password

  • Press OK to enter old password.

  • Enter old password (Default password see above) and press OK

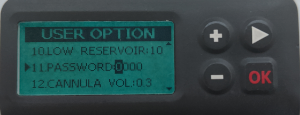

    DanaRS Enter old password

  • If wrong password is entered here there will be no message indicating failure!

  • Set new password (Change numbers with + & - buttons / Move right with arrow button).

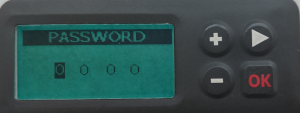

    DanaRS New password

  • Confirm with OK button.

  • Save by pressing OK button again.

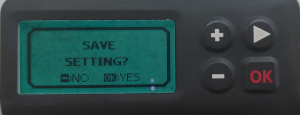

    DanaRS Save new password

  • Move down to “14. EXIT” and press OK button.

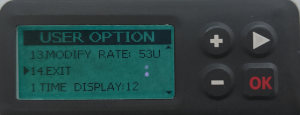

    DanaRS Exit

Dana RS specific errors

Error during insulin delivery

Bolus 인슐린 주입 중 AAPS와 Dana RS의 연결이 끊기는 경우 (즉, Dana RS가 인슐린을 주입하는 동안 폰에서 멀어지는 경우), 다음과 같은 메시지가 뜨고 알람이 울릴 것입니다.

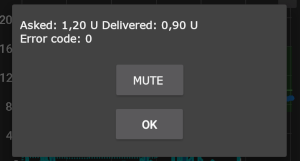

인슐린 주입 알람

  • In most cases this is just a communication issue and the correct amount of insulin is delivered.
  • Check in pump history (either on the pump or through Dana tab > pump history > boluses) if correct bolus is given.
  • Delete error entry in treatments tab if you wish.
  • Real amount is read and recorded on next connect. To force this press BT icon on dana tab or just wait for next connect.

Special note when switching phone

새 폰으로 바꾸는 경우 다음의 과정들이 필요합니다:

  • Export settings on your old phone
  • Transfer settings from old to new phone
  • Manually pair Dana RS with the new phone
    • As pump connection settings are also imported AAPS on your new phone will already “know” the pump and therefore not start a bluetooth scan. Therefore new phone and pump must be paired manually.
  • Install AndroidAPS on the new phone.
  • Import settings on your new phone

Timezone traveling with Dana RS pump

다른 시간대로 이동하는 경우에 대한 정보는 펌프와 다른 시간대로의 이동 섹션을 참조하십시오.
